The terminal is designed for use within an Inline station. If the maximum load of the bus coupler for the communications power (UL) is reached, this terminal can be used to provide this voltage again. To do this, apply a 24 V DC voltage (U24V) to the terminal. The communications power (UL) is generated from this voltage.
1 Description Inline boost terminal for the communications power UL of 0.8 A IB IL 24 PWR IN/R/L-0.8A-PAC © PHOENIX CONTACT Data sheet The terminal is designed for use within an Inline station. If the maximum load of the bus coupler for the communications power (UL) is reached, this terminal can be used to provide this voltage again. To do this, apply a 24 V DC voltage (U24V) to the terminal. The communications power (UL) is generated from this voltage. Features – Supply of the 24 V voltage for generating the communications power (UL) up to 0.8 A – From hardware version 00, approved for use in potentially explosive areas of zone 2 WARNING: Explosion hazard when used in potentially explosive areas When using the terminal in potentially explosive areas, observe the corresponding notes. This data sheet is only valid in association with the IL SYS INST UM E user manual. Make sure you always use the latest documentation. It can be downloaded from the product at phoenixcontact.net/products
Ordering data Accessories Type Order No. Pcs./Pkt. Connector, colored, for Inline power and segment terminal blocks (Connector/Adapter) IB IL SCN-PWR IN-CP 2727637 10 Labeling field, width: 12.2 mm (Marking) IB IL FIELD 2 2727501 10 Insert strip, Sheet, white, unlabeled, can be labeled with: Office printing systems: Laser printer, Mounting type: Insert, Lettering field: 62 x 10 mm (Marking) ESL 62X10 0809492 1 Documentation Type Order No. Pcs./Pkt. User manual, English, Automation terminals of the Inline product range IL SYS INST UM E - - Dimensions (nominal sizes in mm) Width 12.2 mm Height 119.8 mm Depth 71.5 mm 4 Technical data 119,8 71,5 General data Color green Weight 65 g (with connector) Mounting type DIN rail Ambient temperature (operation) -25 °C ... 55 °C Ambient temperature (storage/transport) -25 °C ... 85 °C Permissible humidity (operation) 10 % ... 95 % (non-condensing) Permissible humidity (storage/transport) 10 % ... 95 % (non-condensing) IB IL 24 PWR IN/R/L-0.8A-PAC 7914_en_02 PHOENIX CONTACT 4 / 8 Air pressure (operation) 70 kPa ... 106 kPa (up to 3000 m above sea level) Air pressure (storage/transport) 70 kPa ... 106 kPa (up to 3000 m above sea level) Degree of protection IP20 Protection class III, IEC 61140, EN 61140, VDE
| Mounting type | DIN rail mounting |
| Stripping length | 8 mm |
| Conductor cross section AWG | 28 ... 16 |
Product Tags:
|
|

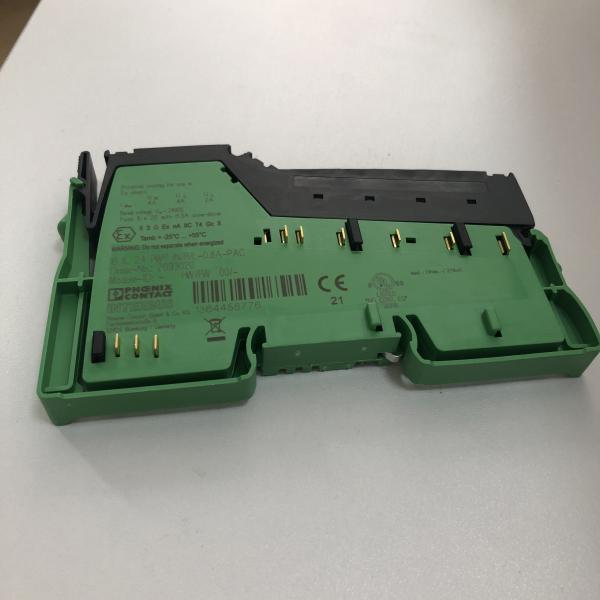

Phoenix IB IL 24 PWR IN/R/L-0.8A-PAC Inline Terminal Block 24 V DC Green Color Images
|
